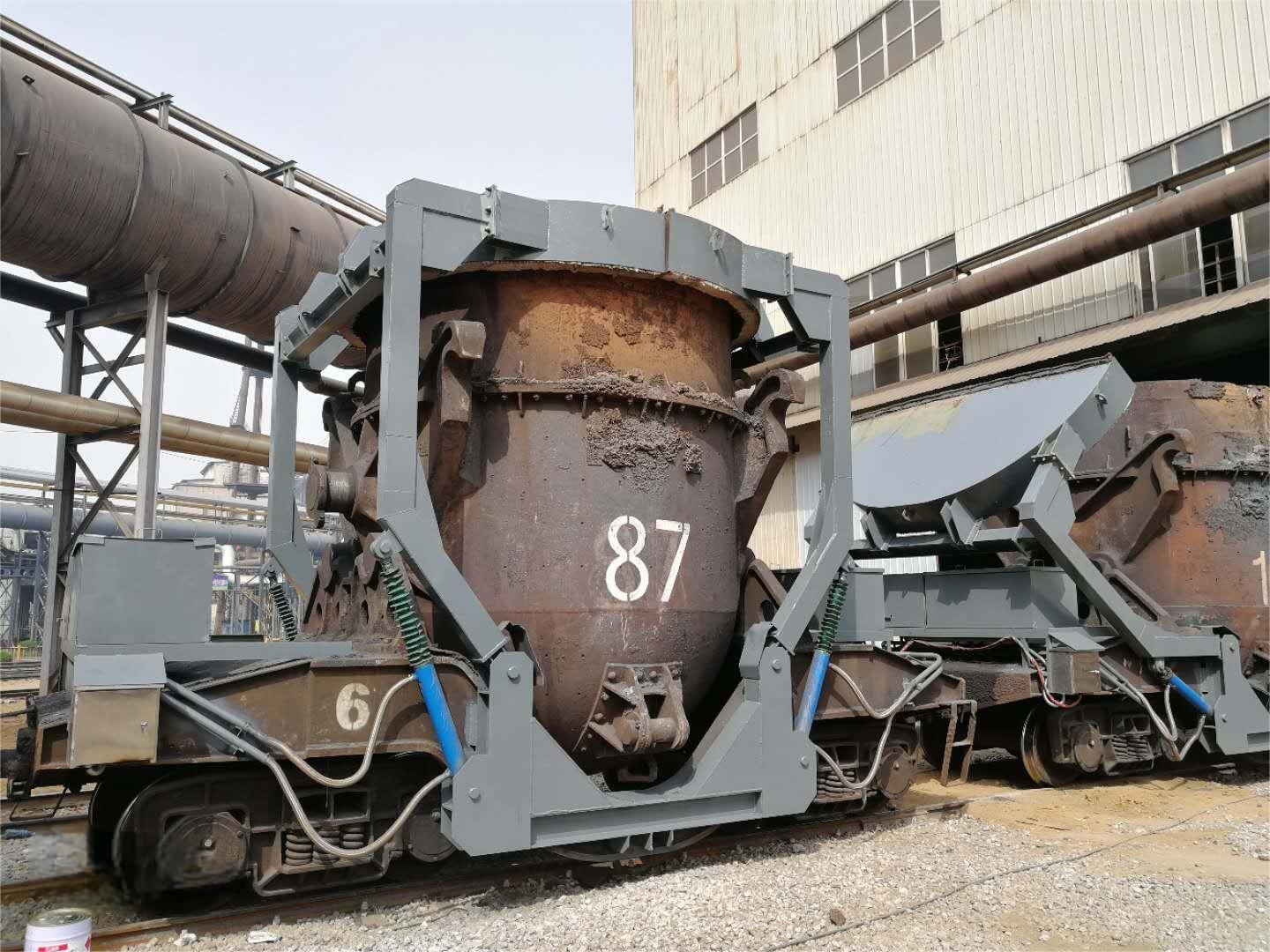

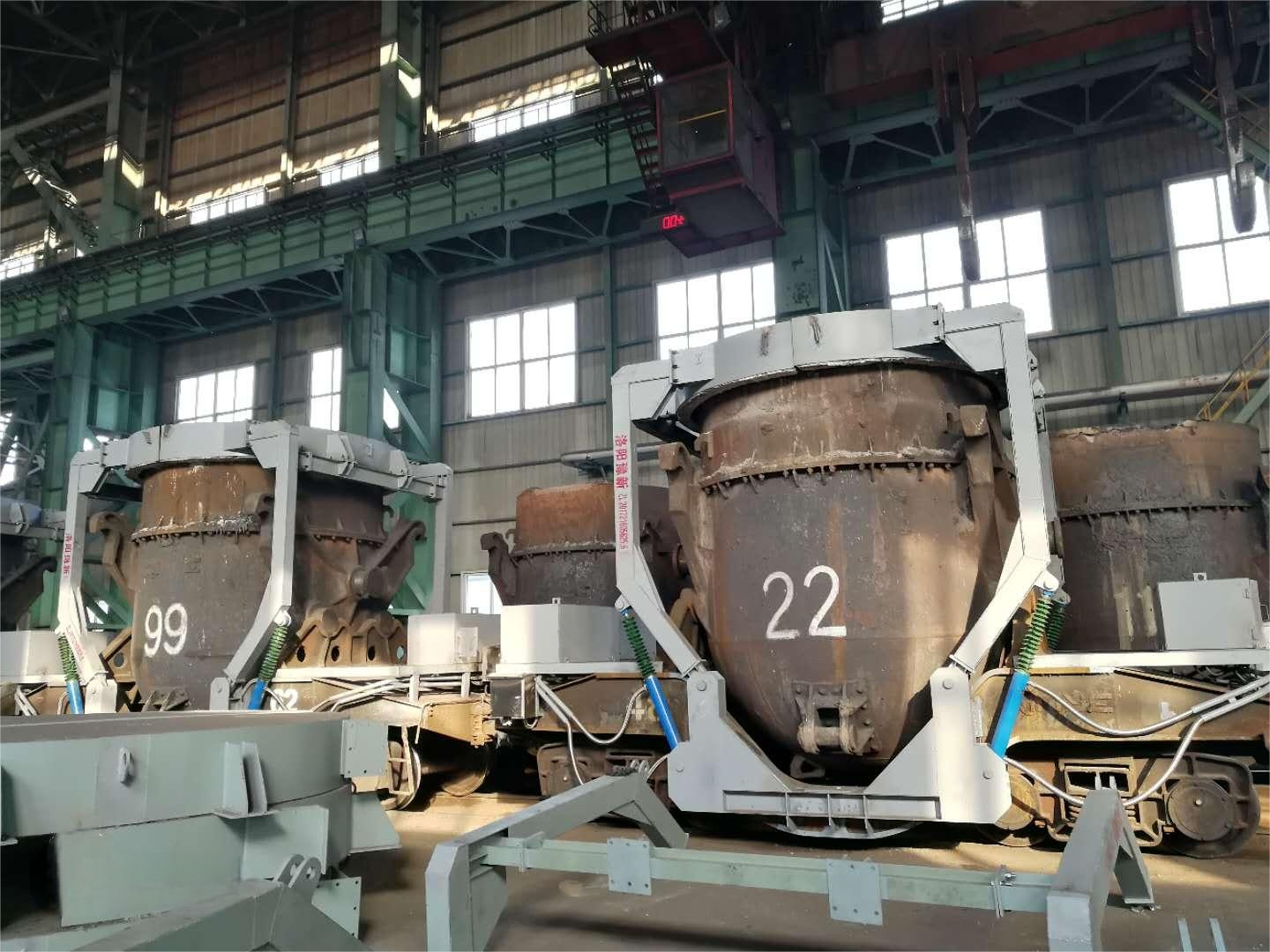

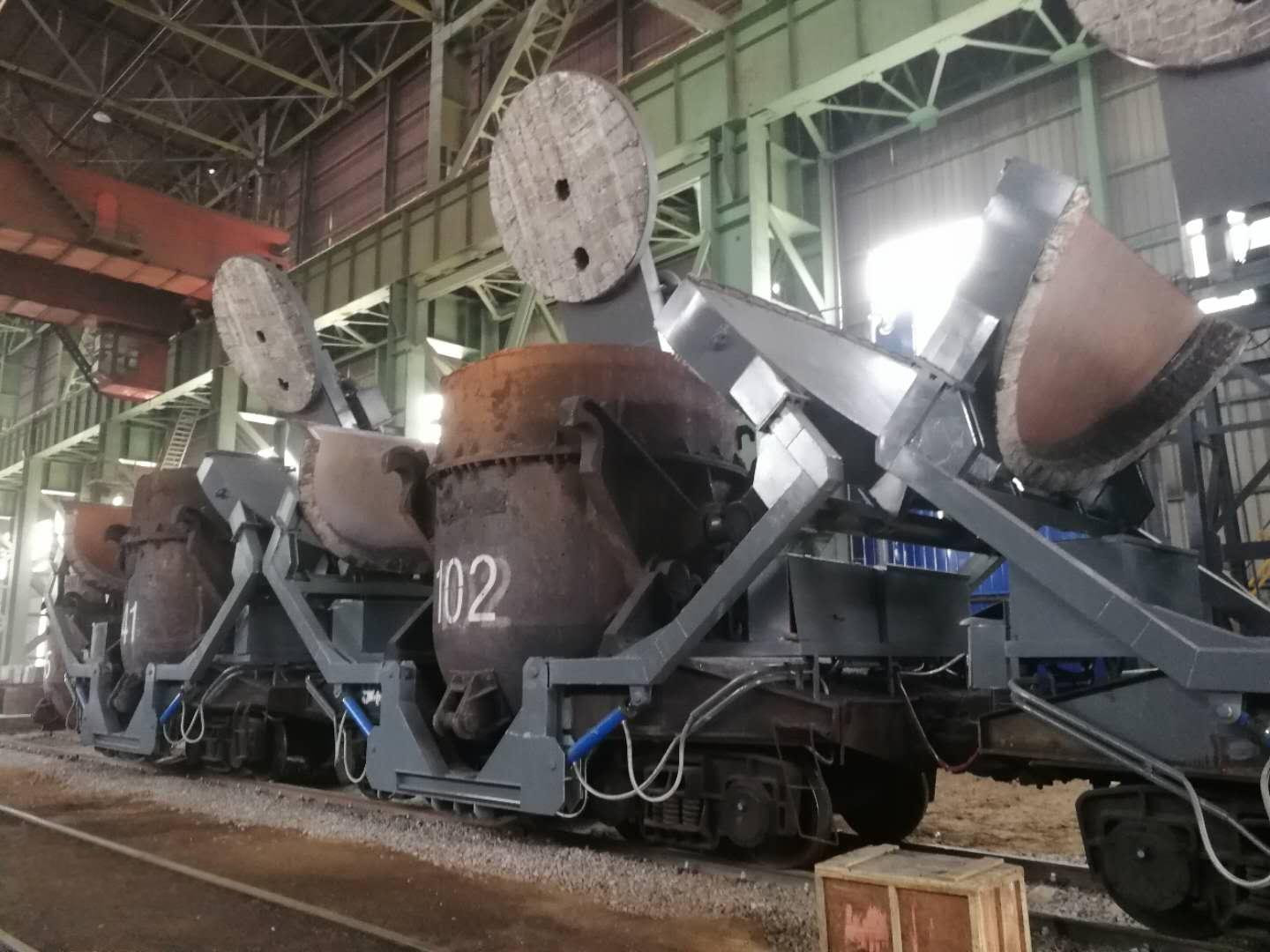

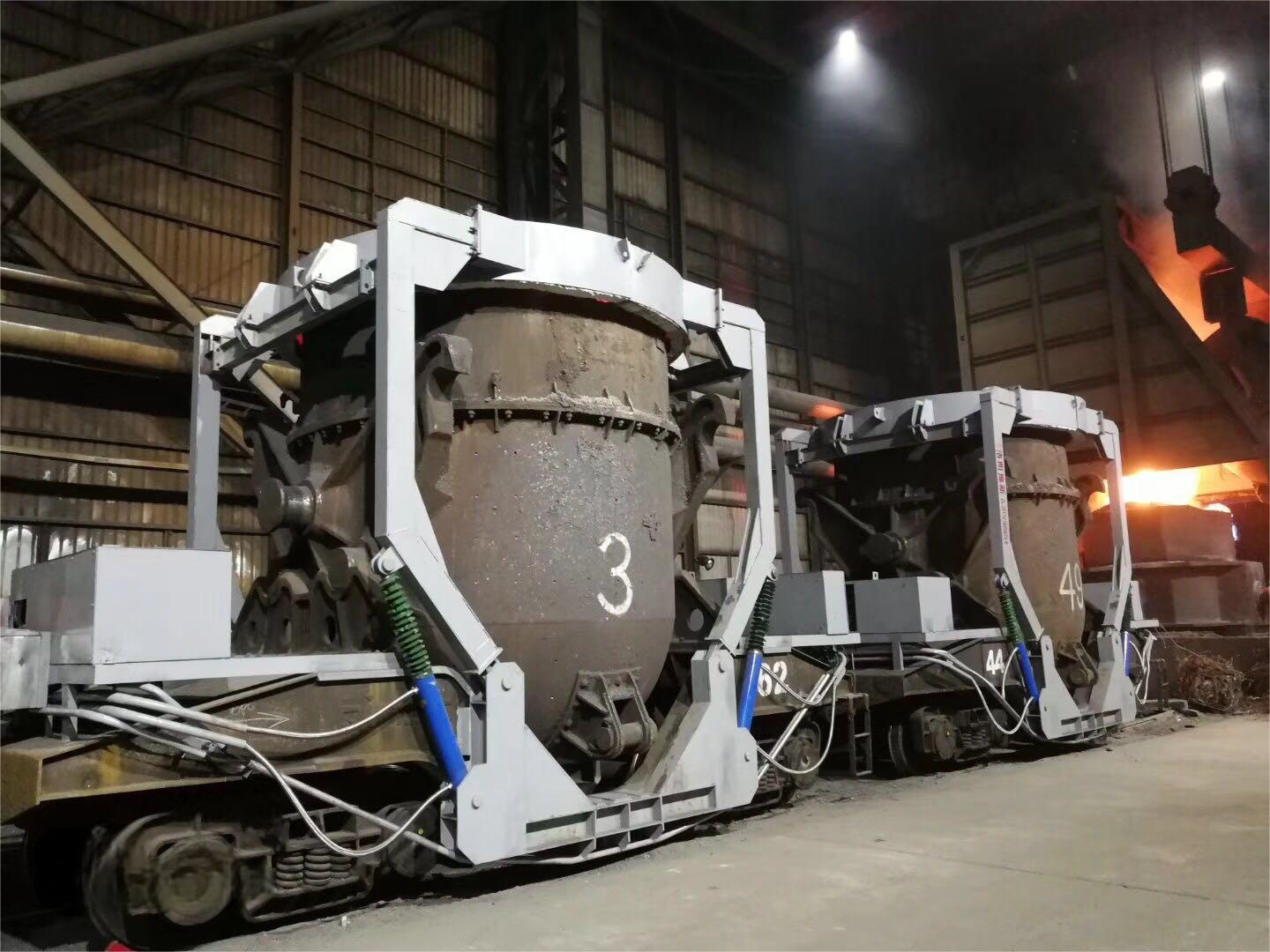

铁水包加揭盖装置是针对铁水包保温研发的专用设备，每台铁包罐车配置一套，随车行走，在铁水包待出铁前揭开包盖，出铁后盖上包盖以便对铁水包进行保温。运输到炼钢厂使用前揭开包盖，使用后及时盖上包盖，以达到保温节能、防雨、环保的目的。

          The iron water ladle cover lifting device is a special equipment developed for the heat preservation of the iron water ladle. Each iron ladle tank truck is with a set, which moves with the vehicle. Before the iron water ladle is ready to pour iron, the cover is lifted. After pouring iron, the cover is covered to the iron water ladle insulated. Before transporting to the steel plant, the cover is lifted, and after use, the cover is covered in time to achieve the purpose of preservation, energy saving, rain prevention and environmental protection.

        1.设备安装灵活，结构简单可靠，一车一配套，操作方便

        2.保温性能强，有效减少60%以上的热量散失

        3.包盖开启速度快慢可调

        1.Flexible equipment installation, simple and reliable structure, one vehicle with a set of matching equipment, convenient operation

        2.Strong thermal insulation performance, effectively heat loss by more than 60%

        3. The opening speed of the cover can be adjusted.

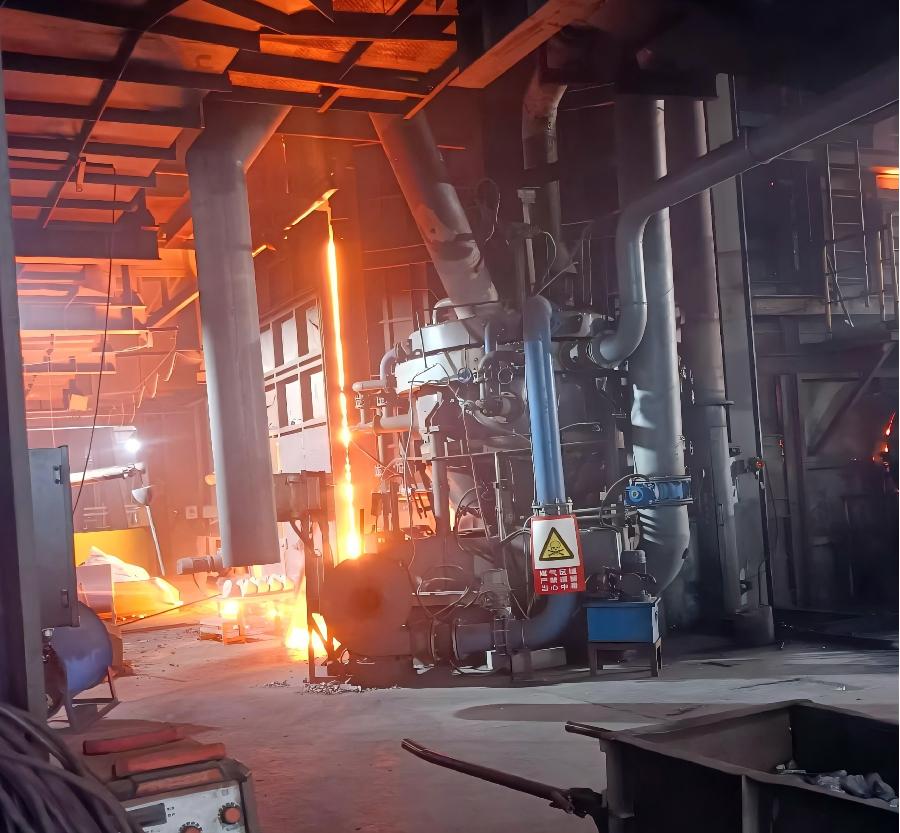

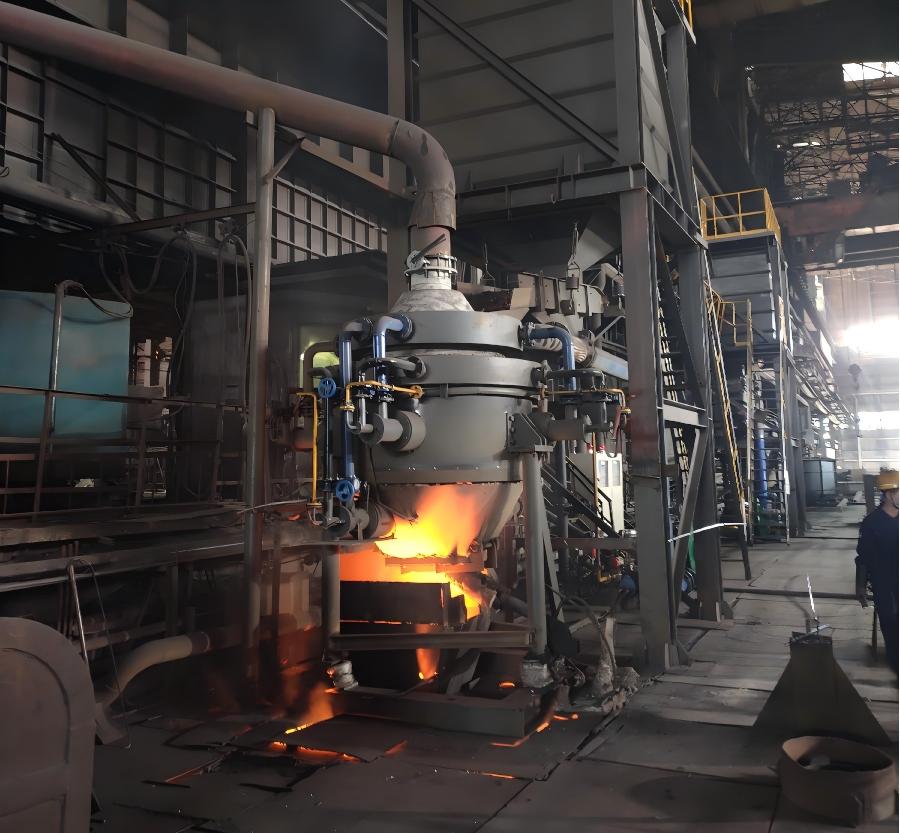

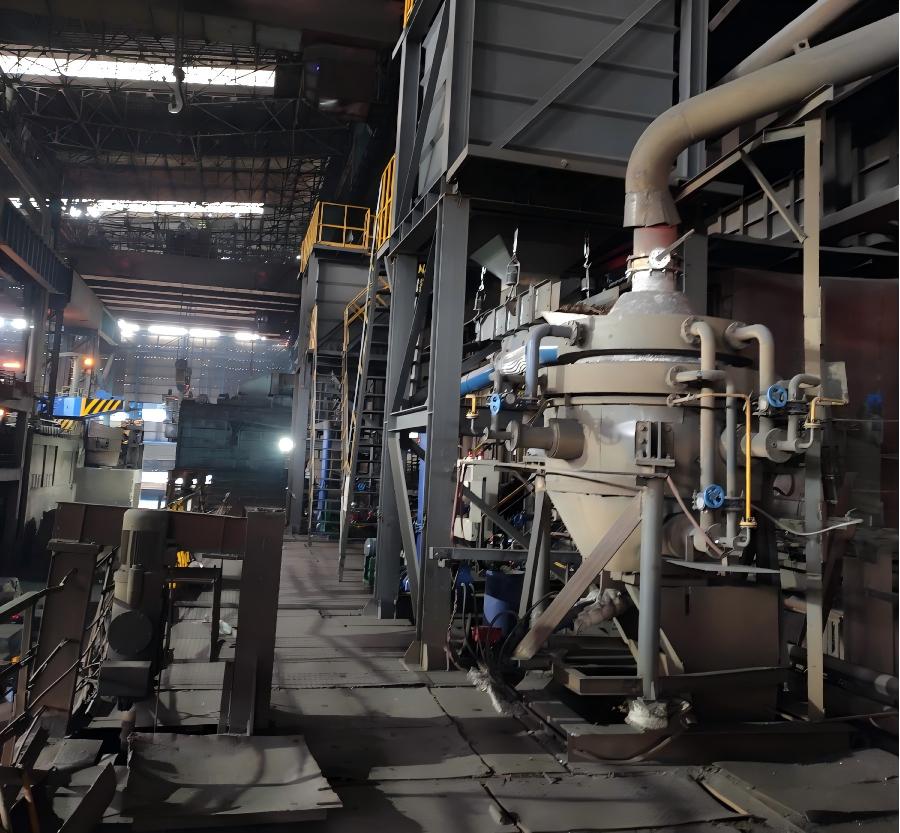

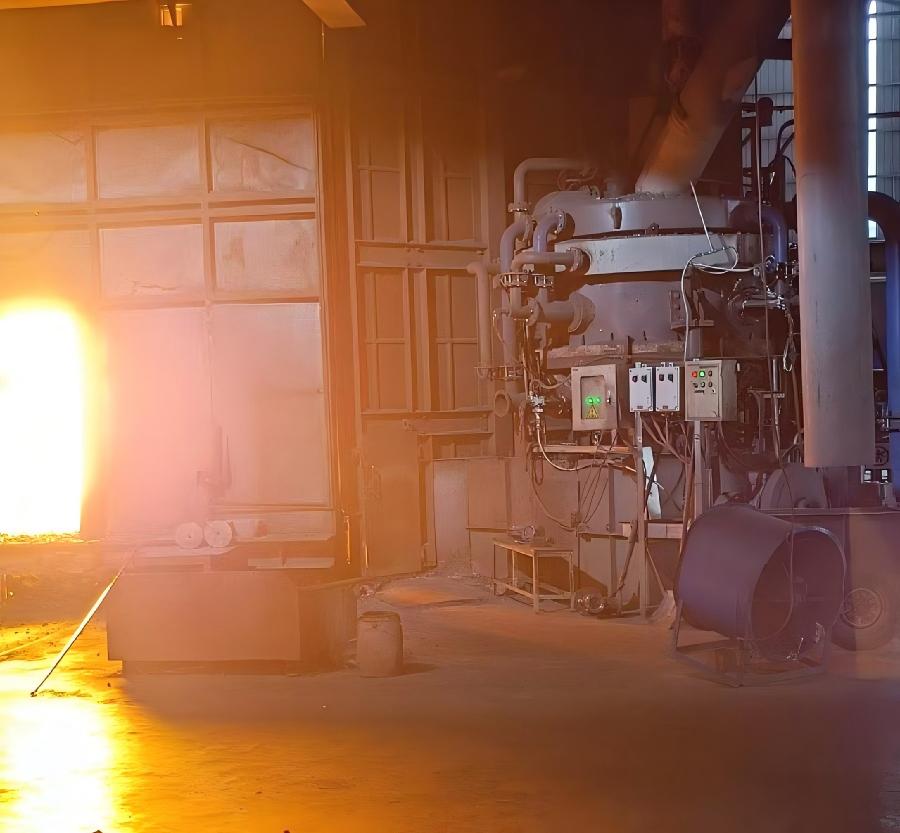

         合金烘烤装置是一种炉后专用合金加热装置，设备放置于转炉操作平台合金投料旋转溜管上方，可对硅铁、锰铁等多种合金炉料进行加热的专用设备。设备核心炉体采用耐磨耐高温合金钢铸造而成。炉体上、中、下部分别安装多套燃烧器，燃烧器沿炉体四周呈对称分布，使高温气流在炉体中沿切线对合金进行加热，可有效的防止物料的烧结。同时利用燃烧腔的热气向上的过程中，可对上部的物料进行预热，从而达到节能的目的。

          The alloy roasting device is a special alloy heating device behind the furnace, which is placed above the alloy feeding rotating pipe on the converter operation platform and a special equipment for heating a variety of alloy furnace charges such as silicon iron and manganese iron. The core furnace body of the equipment is cast from wear-resistant and hightemperature resistant alloy steel. The upper, middle and lower parts of the furnace body are equipped with multiple sets of burners, which are symmetrically distributed around the furnace body, so the high-temperature airflow heats the alloy along the tangent in the furnace body, which can effectively prevent the sintering of materials. At the same time, the thermal gas the combustion chamber can be preheated for the materials above during the process of rising, so as to achieve the purpose of energy saving.

        1.设备维护和操作简单，使用寿命长

        2.合金物料预热温度均匀，避免烧结情况发生

        3.预热时间短，完美匹配炼钢工艺

         1.Simple equipment maintenance and operation, long service life

         2.Uniform preheating temperature of alloy materials, avoiding sintering

         3.Short preheating time, perfectly matched with steelmaking process

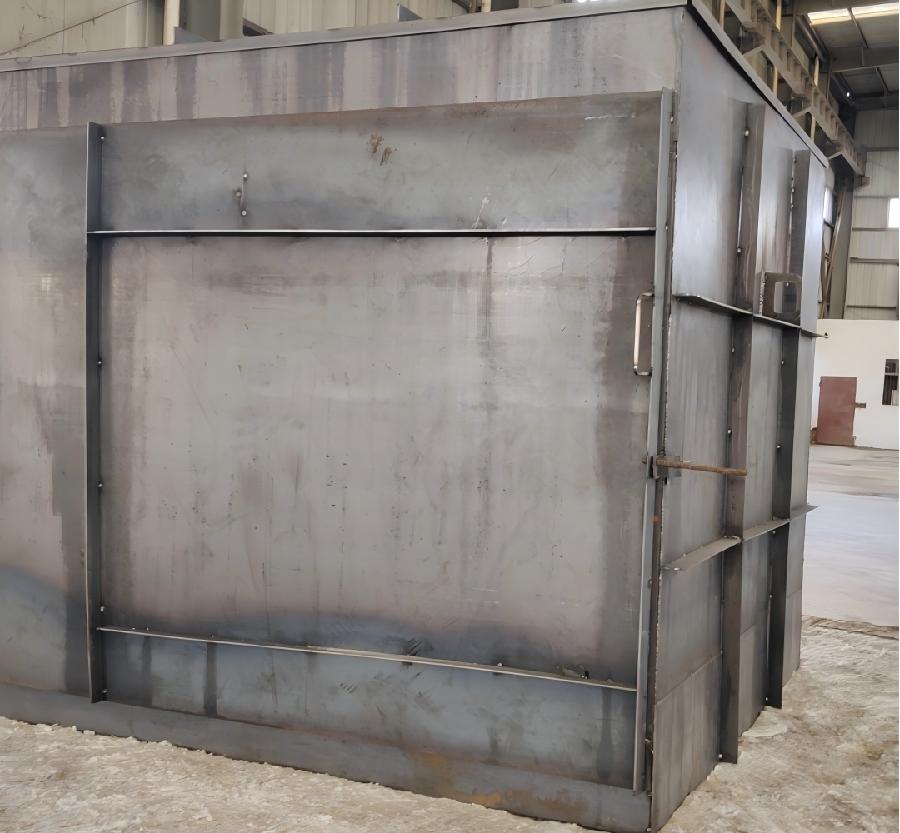

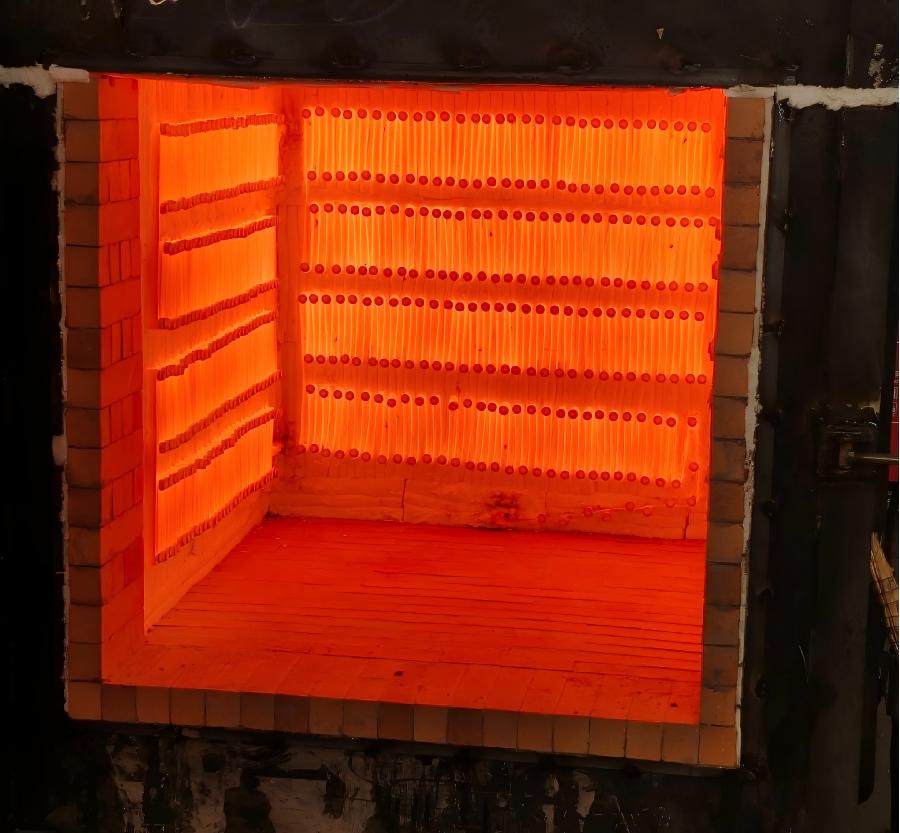

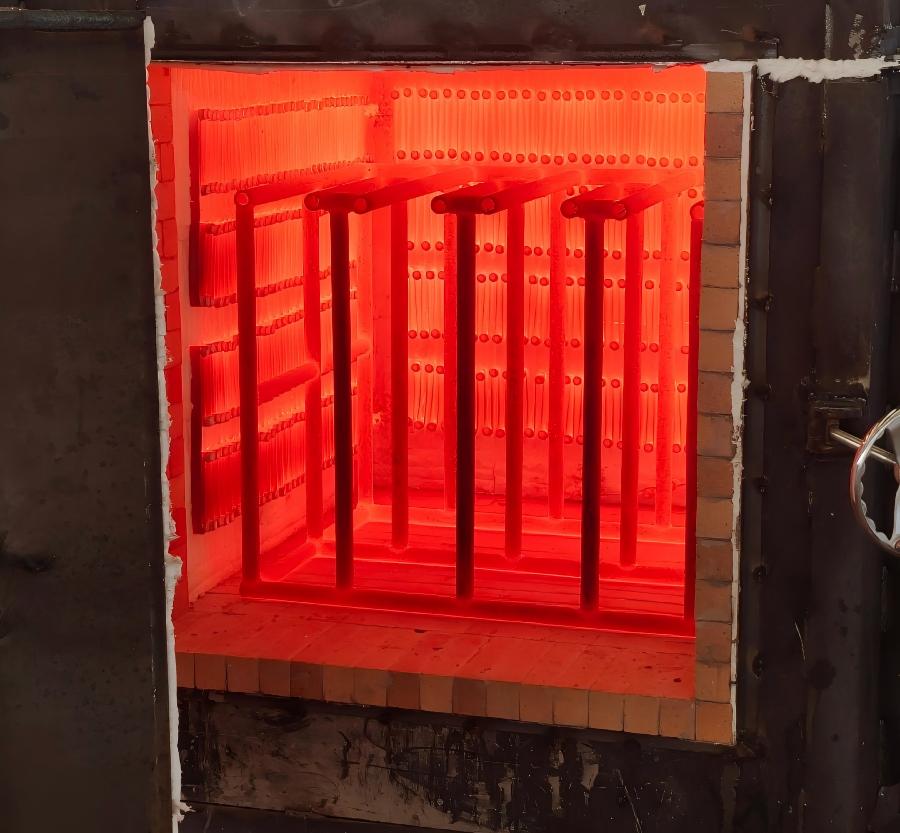

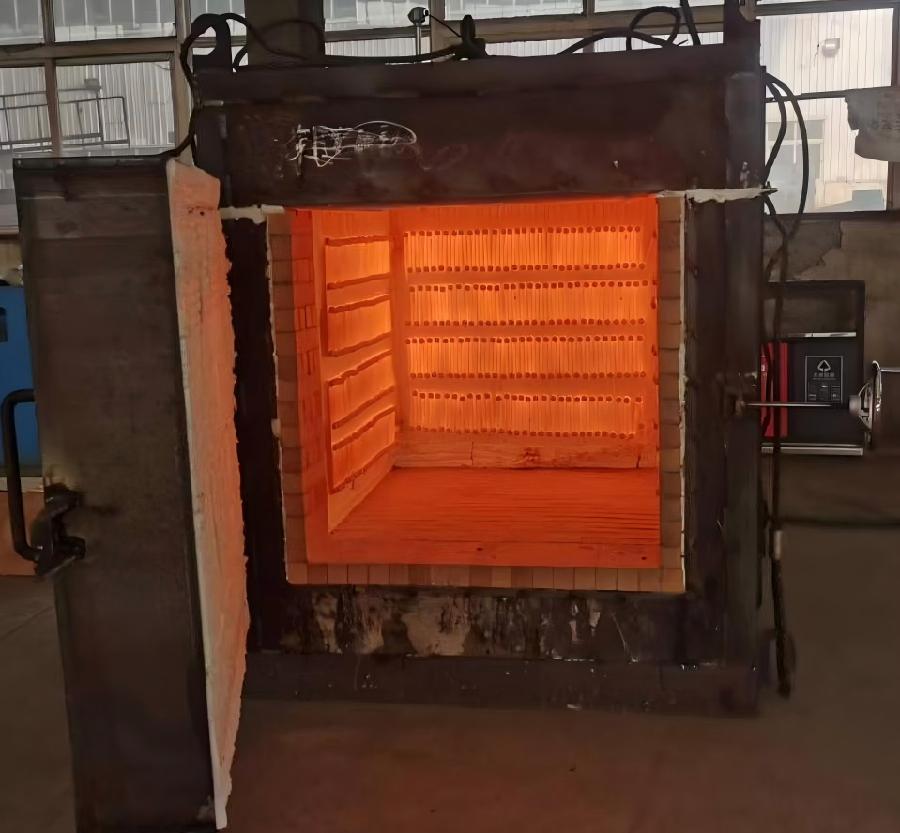

         电加热水口预热炉是一种水口加热的专用设备。设备底部由型钢拼接而成作为底部框架，周围由钢板和筋板作为外轮廓骨架，内部由岩棉作为保温材料。设备通常放置在转炉平台上，支持6–20根水口连续烘烤，设备采用一体式供货，安装方便，随用随取，温度在800-1200℃内可调节。采用纯电作为唯一能源，避免了烟气的直排及一氧化碳泄漏的风险，有效保证了人员的安全。

         The electric heating water nozzle preheating furnace is a dedicated device for water nozzle heating. The bottom of the equipment is assembled by section steel as bottom frame, surrounded by steel plates and rib plates as the outer contour skeleton, and the interior is filled with rock wool as the insulation material. The equipment is usually placed on the platform, supporting the continuous baking of 6-20 water nozzles. The equipment is supplied in one piece, easy to install, and can be used immediately. The can be adjusted within the range of 800-1200℃. Pure electricity is used as the only energy source, avoiding the risk of direct emission of smoke carbon monoxide leakage, and effectively ensuring the safety of personnel.

        1.设备结构简单，一体式供货安装方便快捷，后期维护成本低

        2.加热速度快，能耗低，相比传统煤气预热降低70%能耗

        3.运行安全可靠，随用随取，无烟气排放和一氧化碳泄漏风险。

         1. Simple device structure, one-piece supply and installation is convenient and quick, low maintenance cost later.

         2. Fast heating speed, low energy consumption compared with traditional gas preheating to reduce 70% energy consumption.

         3. Safe and reliable operation, use as you go, no smoke and carbon monoxide leakage risk
